2008 Tadano GR-800XL-1

The 2008 Tadano GR-800XL-1 is a high-capacity rough terrain crane designed for demanding lifting applications across construction, infrastructure, industrial projects, and heavy-duty site work. With an 80 US ton (72.6 metric ton) maximum lifting capacity, this crane combines substantial lifting performance with the mobility and versatility required for challenging job sites.

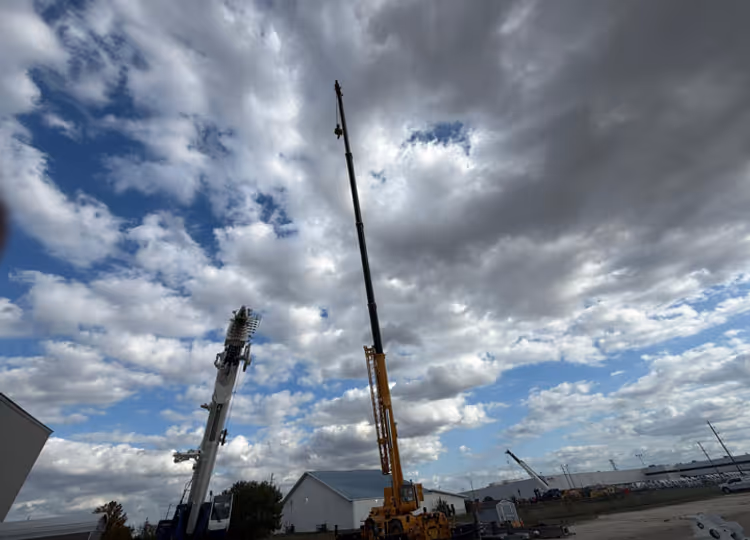

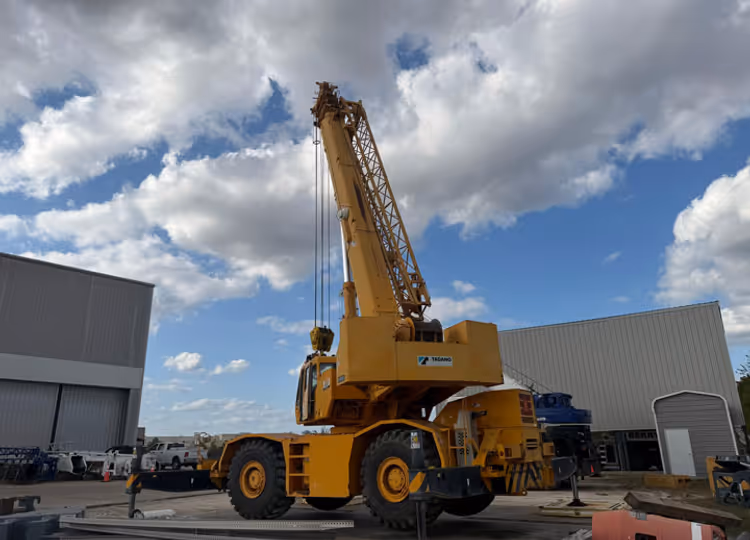

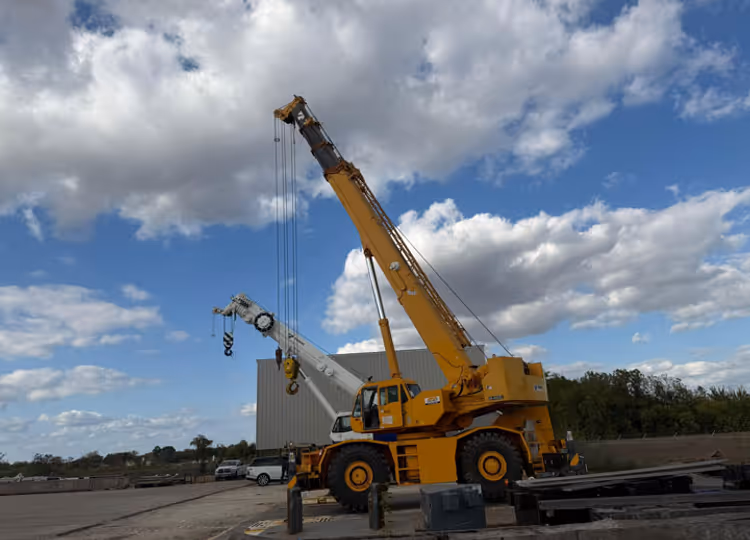

At the heart of the GR-800XL-1 is a five-section, full-power synchronized telescoping boom constructed using a round hexagonal box design. The main boom extends from approximately 37.7 ft (11.5 m) to 144.4 ft (44 m), providing operators with a broad working range for both close-range heavy lifts and elevated or extended-reach applications. The boom can be fully extended in approximately 2 minutes 25 seconds, while hydraulic boom elevation ranges from approximately -2° to +80.7°.

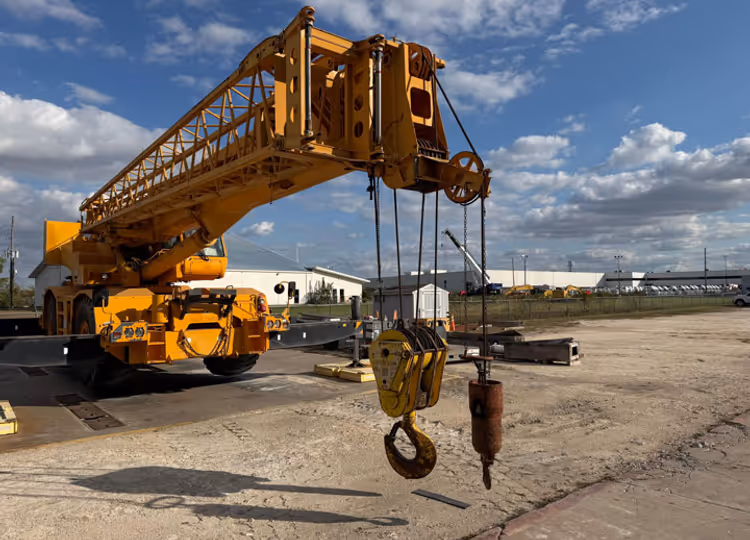

The crane can also be equipped with a two-stage, bi-fold lattice jib, available in approximately 32.5 ft (9.9 m) or 58.1 ft (17.7 m) configurations. The jib provides additional reach and flexibility when working at height or when positioning loads over structures and obstacles. Jib offset options include approximately 3.5°, 25°, and 45°, allowing the operator to adapt the crane configuration to different lifting requirements.

Lifting Performance

The GR-800XL-1’s 80-ton rating provides significant lifting capability, although—as with all mobile cranes—the actual allowable load depends on boom length, working radius, outrigger configuration, boom angle, counterweight, and other operating conditions. Tadano’s rated capacity information should always be consulted for the specific lift being planned. For example, published capacity data shows substantially different capacities at different boom lengths and load radii, illustrating the importance of using the correct load chart for each operation.

Outriggers and Stability

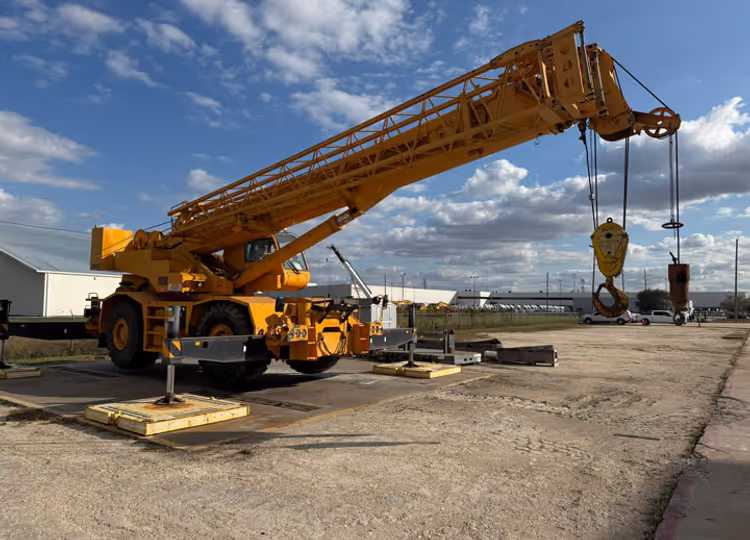

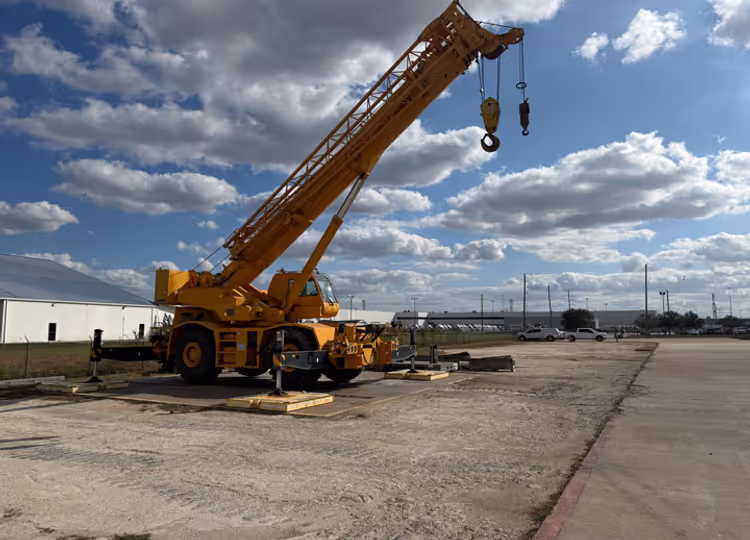

For demanding lifts, the crane uses four hydraulically operated beam-and-jack outriggers. Each outrigger beam and jack can be controlled independently from the operator’s cab, allowing the machine to be properly positioned and stabilised according to site conditions. The outriggers can extend to approximately 23 ft 7.5 in (7.2 m) centre-line, while the crane can retract to a considerably narrower transport configuration.

Mobility and Rough-Terrain Capability

As a rough terrain crane, the GR-800XL-1 is designed for construction sites and areas where conventional road-going mobile cranes may have difficulty operating. It features multiple steering configurations, including two-wheel front steering, two-wheel rear steering, four-wheel coordinated steering, and four-wheel crab steering. Drive configurations include 4×2 front-wheel drive and 4×4 front-and-rear drive, giving the machine additional flexibility when navigating uneven or restricted work areas.

The four-wheel steering configuration provides a turning radius of approximately 21 ft 12 in (6.7 m), while two-wheel steering has a turning radius of approximately 39 ft (11.9 m). Maximum travel speed is approximately 25 mph (40 km/h).

Engine and Operator Controls

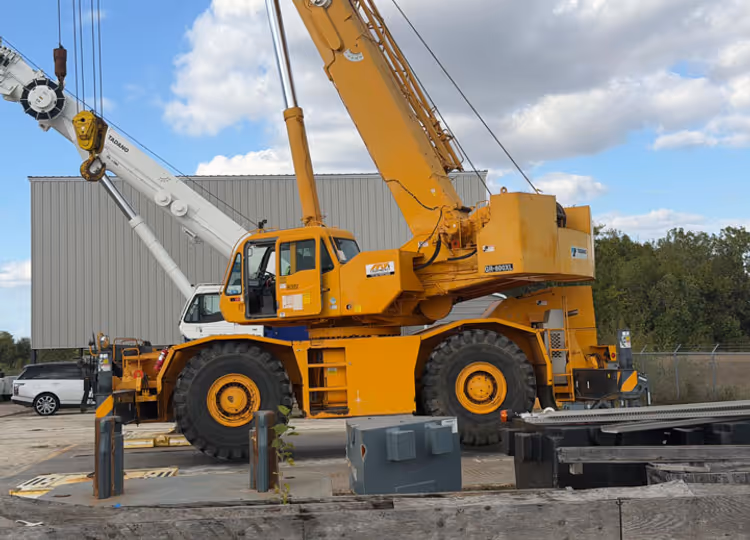

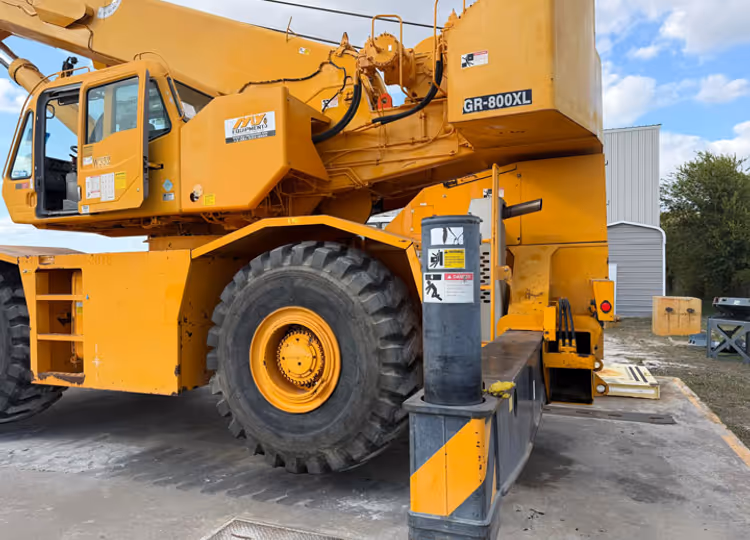

The GR-800XL-1 is powered by a 7.5-litre Mitsubishi direct-injection diesel engine, providing the power required for crane operation and site mobility. Both crane and driving functions can be controlled from the rotating superstructure cab, giving the operator a centralised working position for lifting and manoeuvring operations.

Safety and operational systems include an anti-two-block system incorporating a pendant-type over-winding cut-out device with audio-visual warning functions. The crane is also designed around electronic load monitoring and hydraulic safety systems intended to support controlled lifting operations.

Typical Applications

The 2008 Tadano GR-800XL-1 is well suited to applications such as:

• Heavy construction and infrastructure projects
• Steel erection and structural installation
• Industrial plant construction and maintenance
• Bridge and civil engineering projects
• Precast concrete installation
• Equipment installation and relocation
• General heavy lifting on construction sites
• Maintenance and shutdown projects
• Utility and industrial site work

Key Specifications

Make: Tadano
Model: GR-800XL-1
Year: 2008
Crane Type: Rough Terrain Crane
Rated Capacity: 80 US tons / 72.6 metric tons
Main Boom: 37.7–144.4 ft / 11.5–44 m
Jib: 32.5 or 58.1 ft / 9.9 or 17.7 m
Boom Elevation: Approximately -2° to +80.7°
Engine: 7.5-litre Mitsubishi direct-injection diesel
Outriggers: Four hydraulically operated beam-and-jack outriggers
Maximum Travel Speed: Approximately 25 mph / 40 km/h
Steering Modes: 2-wheel front, 2-wheel rear, 4-wheel coordinated and 4-wheel crab
Drive: 4×2 or 4×4

The 2008 Tadano GR-800XL-1 remains a substantial heavy-lifting machine, offering an excellent combination of 80-ton lifting capacity, 44-metre main boom reach, optional 17.7-metre jib, four-wheel-drive capability and rough-terrain manoeuvrability. Its configuration makes it particularly suitable for contractors and lifting companies requiring a versatile crane capable of handling demanding lifts in challenging site environments.

Note: Actual lifting capacity and permitted operating configuration must be determined from the crane’s applicable Tadano load charts, inspection status, configuration, and site conditions. The specifications above describe the published GR-800XL-1 model and should not be treated as confirmation of the condition or configuration of a particular 2008 unit.
