2012 Tadano GR-1000XL-2

The 2012 Tadano GR-1000XL-2 is a powerful and versatile 100-ton-class hydraulic rough terrain crane designed for demanding lifting applications in construction, infrastructure, mining, industrial maintenance, energy and heavy engineering. Combining a 100 US ton (90.7 metric ton) maximum rated capacity with a 47-metre telescopic main boom, the GR-1000XL-2 provides the lifting strength, reach and mobility required for challenging job sites.

Manufactured by Tadano, the GR-1000XL-2 is built around a heavy-duty rough terrain carrier, independently controlled hydraulic outriggers, four-wheel drive and four-wheel steering. Its configuration allows the crane to manoeuvre effectively on construction sites while providing a stable platform for substantial lifting operations. Tadano’s specifications identify a 47 m main boom and up to a 17.7 m bi-fold lattice jib for this model.

100-Ton Lifting Capacity

The GR-1000XL-2 has a maximum rated lifting capacity of 100 US tons, equivalent to approximately 90.7 metric tons.

This substantial capacity makes the crane suitable for lifting and positioning heavy structural components, industrial machinery, precast concrete, steelwork, plant equipment and other large loads.

As with all mobile cranes, the 100-ton rating represents the crane’s maximum rated capacity under specified conditions. Actual lifting capacity depends on factors including:

• Boom length
• Working radius
• Boom angle
• Outrigger configuration
• Counterweight
• Jib configuration
• Parts of line
• Load chart
• Ground conditions

The appropriate Tadano load chart must therefore be consulted for every planned lift.

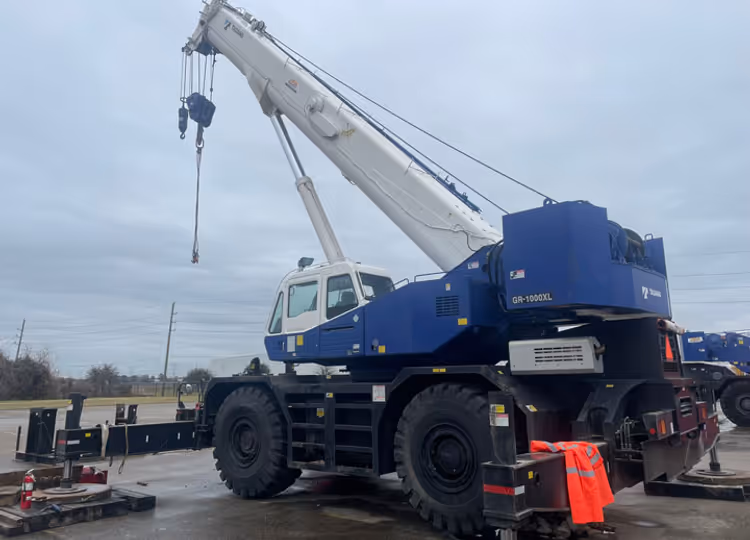

47-Metre Five-Section Telescopic Boom

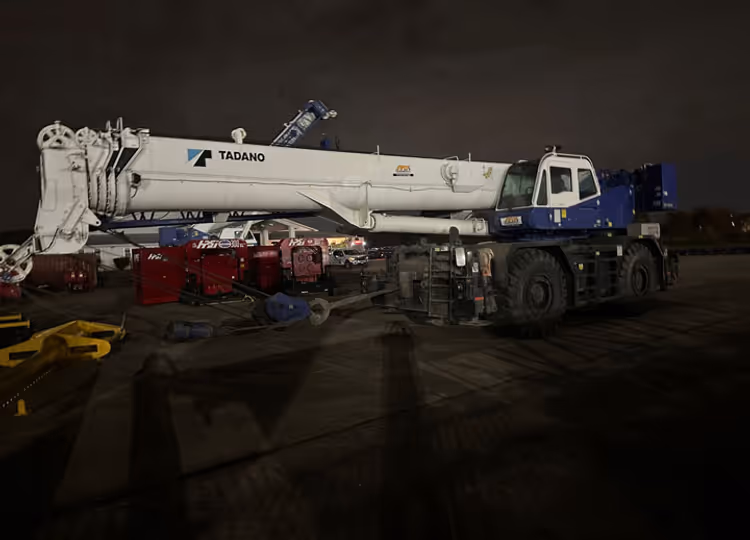

The GR-1000XL-2 features a five-section, full-power, partially synchronized telescoping boom. The main boom extends from approximately 12.0 m to 47.0 m (39.4 ft to 154.2 ft).

This long boom gives the crane an extensive working envelope, allowing it to perform heavy lifts at relatively close radii while also reaching elevated or difficult-to-access positions.

The round-box boom construction provides a strong and rigid platform for demanding lifting operations, while the full-power telescoping system allows the operator to adjust boom length hydraulically according to the requirements of the lift.

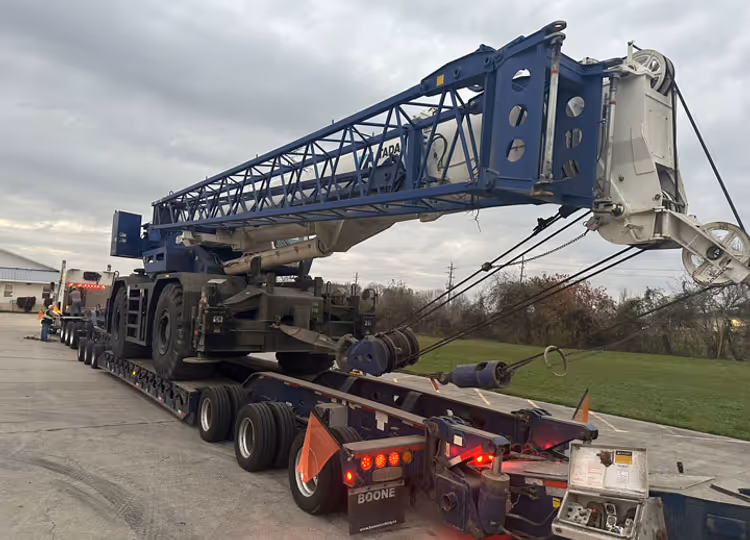

Bi-Fold Lattice Jib

For applications requiring additional height and reach, the GR-1000XL-2 can be fitted with a bi-fold lattice jib.

Available jib lengths include approximately:

• 10.1 m (33.2 ft)
• 17.7 m (58.1 ft)

The jib can be configured with pinned offset positions of approximately 3.5°, 25° or 45°, providing additional flexibility when positioning loads at height or over obstacles. The jib is designed as a quick-reeving, swing-away/tilt-type arrangement with self-storing pins.

With the maximum jib installed, the crane can achieve significantly greater hook height and working reach than is possible with the main boom alone.

Four-Wheel Drive and Steering

One of the major advantages of the GR-1000XL-2 is its rough terrain mobility.

The carrier incorporates 4×4 drive capability and four-wheel steering, allowing the machine to manoeuvre around demanding construction and industrial sites.

Available steering configurations include:

• Two-wheel front steering
• Two-wheel rear steering
• Four-wheel coordinated steering
• Four-wheel crab steering

The four-wheel steering system gives the operator greater manoeuvrability when positioning the crane in confined areas. Tadano’s specifications give a turning radius of approximately 6.8 m with four-wheel steering and approximately 11.9 m with two-wheel steering.

This makes the GR-1000XL-2 particularly useful where large lifting capacity is required without sacrificing site mobility.

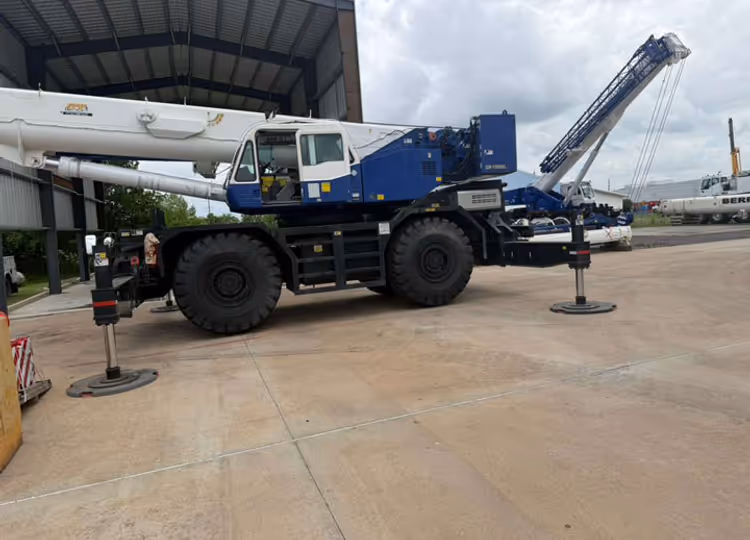

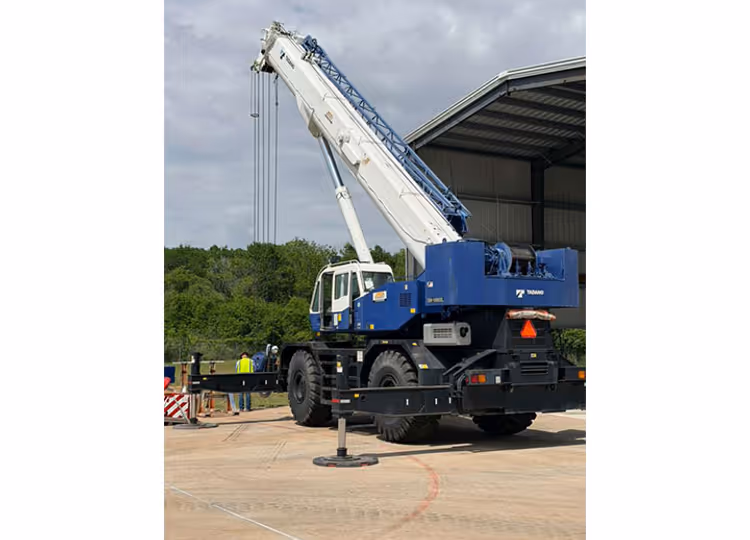

Hydraulic Outrigger System

The crane uses four independently controlled hydraulic outriggers to establish a stable lifting platform.

The GR-1000XL-2 provides multiple outrigger extension positions, including approximately:

• 2.7 m minimum extension
• 5.5 m intermediate extension
• 6.7 m intermediate extension
• 7.3 m maximum extension

The outrigger floats are approximately 0.6 m in diameter.

The multiple outrigger positions allow the crane to be configured according to available site space and lifting requirements. This is particularly useful on congested construction sites where full extension may not always be practical.

Engine and Powertrain

The exact engine specification depends on the regional configuration of the individual GR-1000XL-2.

For the South Africa/South America Tier 2 configuration, Tadano specifies a Mitsubishi 6M60-TLA3B six-cylinder, turbocharged and after-cooled diesel engine.

Published specifications include:

Engine: Mitsubishi 6M60-TLA3B
Displacement: 7.54 litres
Cylinders: 6
Maximum Gross Output: Approximately 267 hp / 200 kW at 2,600 rpm
Maximum Torque: Approximately 785 Nm / 579 lb-ft at 1,400 rpm
Cooling: Liquid-cooled
Fuel Capacity: Approximately 300 litres

The engine provides the power necessary for both crane functions and rough-terrain travel while maintaining the performance expected from a 100-ton-class machine.

Automatic Transmission

The crane uses an electronically controlled automatic transmission with a torque converter and powershift arrangement.

The carrier provides six forward and two reverse speeds, together with selectable drive configurations for 4×2 front-wheel drive or 4×4 front-and-rear drive.

This arrangement allows the operator to select the appropriate drive mode according to terrain, travelling conditions and site requirements.

Tadano AML-C Load Moment Indicator

The GR-1000XL-2 incorporates Tadano’s AML-C electronic Load Moment Indicator system, designed to help the operator monitor critical crane operating parameters.

The system monitors and displays information including:

Boom angle
Boom length
Jib length
Jib offset angle
Load radius
Rated lifting capacity
Actual load
Load moment ratio
Outrigger condition
Boom position
Swing range
Tip height

The system can provide audible and visual warnings and includes control functions intended to help prevent operation beyond the crane’s rated parameters.

Counterweight

Depending on the regional specification, the GR-1000XL-2 was supplied with different counterweight arrangements.

Tadano identifies a removable counterweight configuration for South Africa/South America and a self-removable counterweight configuration for certain North American specifications.

For a specific 2012 crane, the serial number and specification number should be checked to confirm the exact counterweight arrangement.

Two-Winch System

The GR-1000XL-2 can be configured with main and auxiliary hoists, giving the crane greater flexibility for demanding lifting and rigging applications.

The standard specification includes variable-speed main and auxiliary hoists, grooved drums and cable followers. Tadano documentation lists approximately 820 ft of 3/4-inch wire rope for the main hoist and approximately 456 ft for the auxiliary hoist in the relevant specification.

The crane can also be equipped with a 7.3-ton (6.6-metric-ton) hook, while the exact hook block and headache-ball equipment should be confirmed for the individual unit.

Safety and Operator Systems

The GR-1000XL-2 incorporates several systems designed to assist the operator during lifting operations.

Standard equipment includes:

Tadano AML-C Load Moment Indicator

• Anti-two-block protection
• Boom angle indicator
• Outrigger extension detection
• Outrigger state monitoring
• Drum rotation indicators
• Audible and visual warnings
• Electronic crane monitoring
• Automatic rear axle oscillation lockout
• Control lever lockout
• Load monitoring functions
• Emergency and operational warning systems

These systems are designed to improve operator awareness and help maintain the crane within its permitted operating envelope.

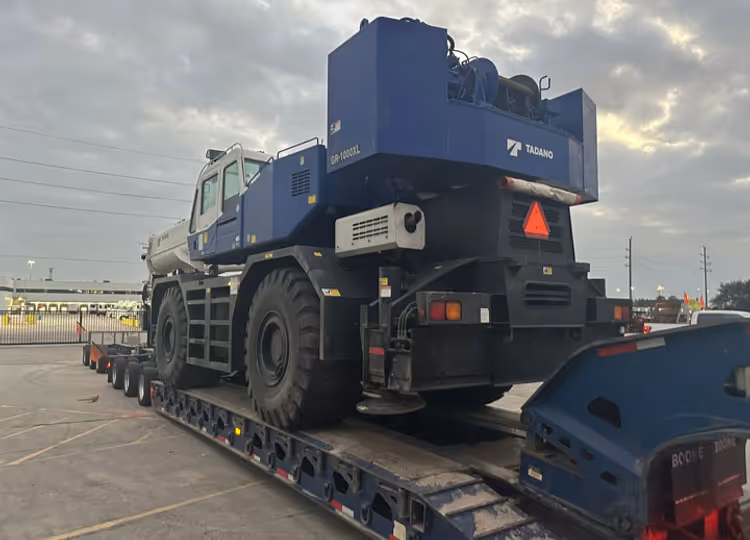

Heavy-Duty 29.5-25 Tyres

The GR-1000XL-2 is specified with large 29.5-25 34PR tyres, providing substantial ground clearance and traction for rough-terrain applications.

Combined with four-wheel drive and multiple steering modes, the tyre and carrier configuration allows the crane to travel and position itself effectively on demanding construction sites.

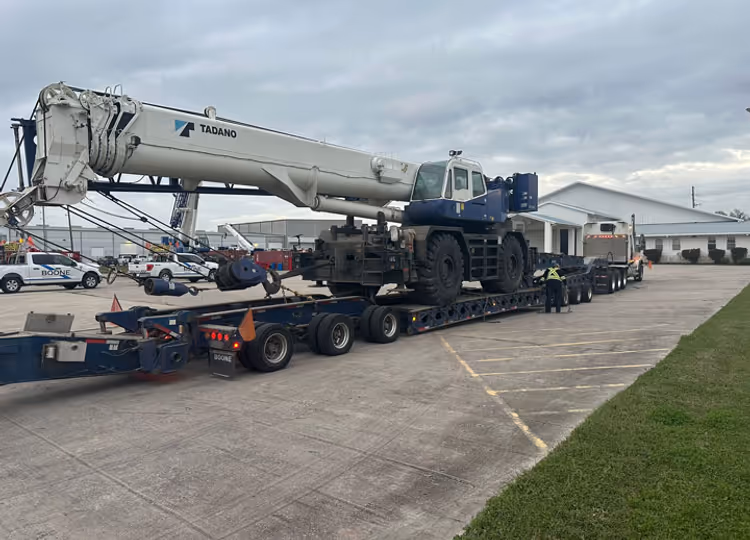

Dimensions

For the relevant 29.5-25 tyre configuration, published Tadano dimensions include approximately:

Overall length: 14.375 m
Overall width: 3.315 m
Overall height: 3.795 m
Four-wheel steering turning radius: 6.8 m
Two-wheel steering turning radius: 11.9 m

These dimensions provide a useful indication of the machine’s transport and site requirements, although the actual dimensions can vary depending on attachments and configuration.

Typical Applications

The 2012 Tadano GR-1000XL-2 is well suited to a wide range of demanding lifting applications, including:

Heavy construction
Infrastructure projects
Bridge construction
Steel erection
Precast concrete installation
Mining operations
Power and energy projects
Oil and gas facilities
Petrochemical plants
Industrial plant construction
Machinery installation
Equipment replacement
Factory maintenance
Shutdown and turnaround projects
General heavy lifting
Construction sites with difficult terrain
Key Specifications

Manufacturer: Tadano
Model: GR-1000XL-2
Year: 2012
Type: Hydraulic Rough Terrain Crane
Maximum Capacity: 100 US tons / 90.7 metric tons
Main Boom: 12.0–47.0 m / 39.4–154.2 ft
Boom: Five-section, full-power, partially synchronized telescopic
Jib: 10.1 m or 17.7 m / 33.2 ft or 58.1 ft
Jib Offset: 3.5°, 25° or 45°
Drive: 4×2 / 4×4
Steering: 2-wheel front, 2-wheel rear, 4-wheel coordinated and 4-wheel crab
Outriggers: Four independently controlled hydraulic outriggers
Maximum Outrigger Spread: Approximately 7.3 m centre-to-centre
Tyres: 29.5-25 34PR
Turning Radius: Approximately 6.8 m with four-wheel steering
Fuel Tank: Approximately 300 litres
Engine – South Africa/South America specification: Mitsubishi 6M60-TLA3B
Engine Displacement: 7.54 litres
Engine Output: Approximately 267 hp / 200 kW
Load Moment Indicator: Tadano AML-C
Hoists: Main and auxiliary
Maximum Jib: 17.7 m
Counterweight: Regional/configuration dependent

Why Choose the Tadano GR-1000XL-2?

The 2012 Tadano GR-1000XL-2 offers the combination of 100-ton lifting capacity, 47-metre telescopic boom, optional 17.7-metre jib and excellent rough-terrain mobility that makes this model particularly valuable for demanding construction and industrial lifting work.

Its four-wheel drive, four-wheel steering, independently controlled outriggers and electronic load monitoring system provide the versatility needed to work in challenging environments, while the long telescopic boom and optional lattice jib provide the reach necessary for elevated and extended lifts.

For crane contractors, rental companies, construction firms, mining operations and industrial lifting specialists, the GR-1000XL-2 remains a capable heavy-duty rough terrain crane with a strong combination of lifting performance, manoeuvrability and job-site flexibility.

Important Specification Note

Tadano produced the GR-1000XL-2 in several regional configurations. For the South Africa/South America specification, Tadano identifies a removable counterweight and Tier 2-level engine configuration, while other markets used different engine and counterweight arrangements.

Accordingly, the serial number, specification number, load charts, engine, counterweight, jib, hook block and supplied accessories should be verified against the actual 2012 machine before purchase, transport or lifting operations.
